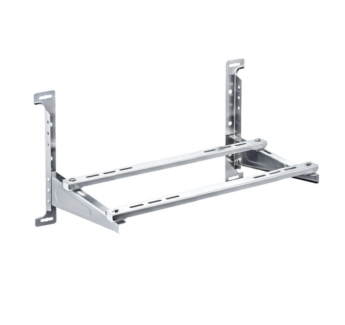

The WTG Series Wall-Mounted Air Conditioner Brackets are designed to provide stable and secure support for outdoor AC units in residential and light commercial HVAC installations. The structure is engineered for wall mounting, helping contractors achieve a clean installation layout and reliable load-bearing performance.
This series includes both angle iron bracket and stainless steel bracket options for different project preferences and environmental requirements.
| Model No. | Product Name | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| WTG203 | Wall-mounted Angle Iron Bracket | 480 | 460 | 740 |
| WTG204 | Wall-mounted Angle Iron Bracket | 540 | 540 | 950 |
| WTG205 | Wall-mounted Stainless Steel Bracket | 480 | 460 | TBC |
| WTG206 | Wall-mounted Stainless Steel Bracket | 540 | 540 | TBC |
Note: The “C” dimension for WTG205 / WTG206 is not visible in the provided catalog image. Please confirm the C value if you need strict dimensional verification for engineering drawings.
