Fire and Ambulance Services Academy in Tseung Kwan O, Hong Kong.
https://zh.wikipedia.org/wiki/%E6%B6%88%E9%98%B2%E5%8F%8A%E6%95%91%E8%AD%B7%E5%AD%B8%E9%99%A2
作者 Exploringlife - 自己的作品，CC BY-SA 4.0，https://commons.wikimedia.org/w/index.php?curid=48642833

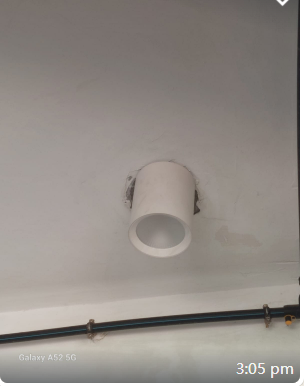

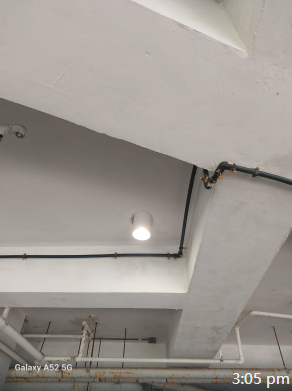

The LED Surface Mounted Downlight was installed at the Fire and Ambulance Services Academy, located at 11 Pak Shing Kok Road, Tseung Kwan O, New Territories, Hong Kong. This lighting solution provides efficient and reliable illumination for the Academy’s various training rooms, offices, and operational spaces, ensuring optimal visibility and safety during day or night activities.

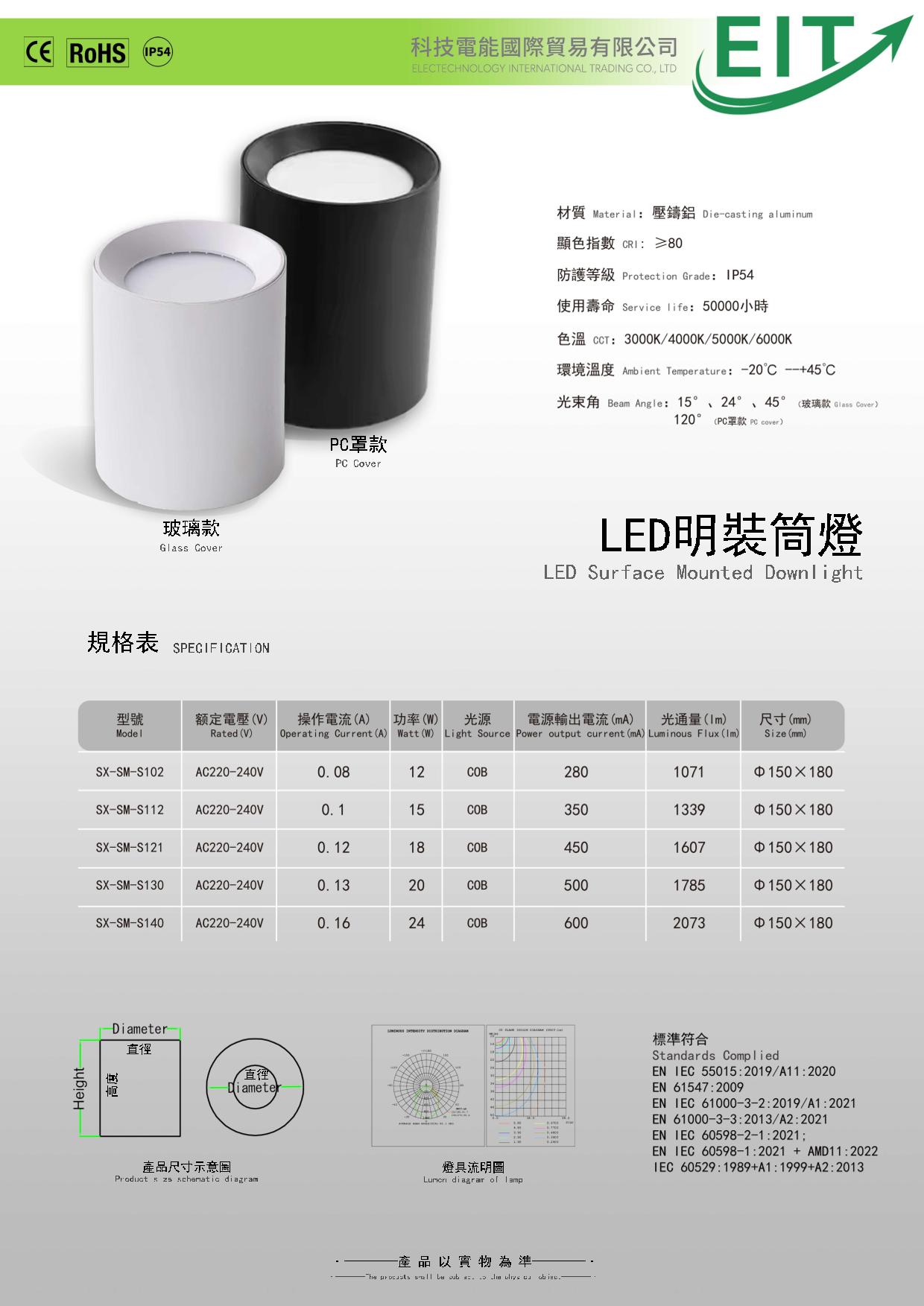

Product Overview
The LED Surface Mounted Downlight is engineered for high performance and durability. It features a Die-casting aluminum body and a Polycarbonate cover, offering long-lasting quality and resistance against external elements. With a CRI ≥ 80, it ensures excellent color rendering, making it an ideal solution for various industrial and commercial applications.
- Material: Die-casting Aluminum + Polycarbonate cover
- Protection Grade: IP54
- Ambient Temperature: -20°C to +45°C
- Size: Ø150x180mm
- Color Temperature: 3000K / 4000K / 5000K / 6000K
- Beam Angle: 120° (with PC cover)
- Service Life: 50,000 hours
- Standards: Complies with EN IEC 55015:2019/A11:2020, EN IEC 60598-1:2021 + AMD11:2022, RoHS Compliant
Product Specifications
| Model | Rated Voltage | Operating Current (A) | Watt (W) | Luminous Flux (lm) | Size (mm) | Light Tube Type | Tube Length (mm) |
|---|---|---|---|---|---|---|---|
| SY-SM-S102 | AC220-240V | 0.08 | 12 | 280 | Ø150x180 | COB | 1071 |
| SY-SM-S112 | AC220-240V | 0.10 | 15 | 350 | Ø150x180 | COB | 1339 |
| SY-SM-S121 | AC220-240V | 0.12 | 18 | 450 | Ø150x180 | COB | 1607 |
| SY-SM-S130 | AC220-240V | 0.13 | 20 | 500 | Ø150x180 | COB | 1785 |
| SY-SM-S140 | AC220-240V | 0.16 | 24 | 600 | Ø150x180 | COB | 2073 |
Standards and Compliance
The LED Surface Mounted Downlight complies with several international standards to ensure superior performance, safety, and environmental compatibility. Below are the key standards our product meets:
- EN IEC 55015:2019/A11:2020
- EN IEC 61547:2009
- EN IEC 61000-3-2:2019/A1:2021
- IEC 60529:1989+A1:1999+A2:2013
- EN IEC 60598-2-1:2021
- EN IEC 60598-1:2021 + AMD11:2022
