The LED Surface Mounted Downlight was installed at the Lei Muk Shue Fire Station located at 300 Wo Yi Hop Road, Kwai Chung, New Territories, Hong Kong. This high-performance lighting solution is ideal for indoor spaces in the fire station, providing excellent illumination for offices, hallways, and operational areas. Its durability and energy efficiency make it perfect for long-term use in demanding environments.
Product Overview
The LED Surface Mounted Downlight is engineered with durability and energy efficiency in mind. Featuring a Die-casting aluminumPolycarbonate cover, it is built to last and withstand harsh conditions. The light offers excellent CRI ≥ 80 color rendering and is rated IP54 for protection against dust and water splashes, making it an ideal choice for both commercial and industrial applications.
- Material: Die-casting Aluminum + Polycarbonate Cover
- Protection Grade: IP54
- Ambient Temperature: -20°C to +45°C
- Size: Ø150x180mm
- Color Temperature: 3000K/4000K/5000K/6000K
- Beam Angle: 120° (with PC cover)
- Service Life: 50,000 hours
- Standards: Complies with EN IEC 55015:2019/A11:2020, EN IEC 60598-1:2021 + AMD11:2022, RoHS Compliant
Product Specifications
| Model | Rated Voltage | Operating Current (A) | Watt (W) | Luminous Flux (lm) | Size (mm) | Light Tube Type | Tube Length (mm) |
|---|---|---|---|---|---|---|---|
| SY-SM-S102 | AC220-240V | 0.08 | 12 | 280lm | Ø150x180 | COB | 1071 |
| SY-SM-S112 | AC220-240V | 0.10 | 15 | 350lm | Ø150x180 | COB | 1339 |
| SY-SM-S121 | AC220-240V | 0.12 | 18 | 450lm | Ø150x180 | COB | 1607 |
| SY-SM-S130 | AC220-240V | 0.13 | 20 | 500lm | Ø150x180 | COB | 1785 |
| SY-SM-S140 | AC220-240V | 0.16 | 24 | 600lm | Ø150x180 | COB | 2073 |
Standards and Compliance
The LED Surface Mounted Downlight complies with several international standards to ensure superior performance, safety, and environmental compatibility. Below are the key standards our product meets:
- EN IEC 55015:2019/A11:2020
- EN IEC 61547:2009
- EN IEC 61000-3-2:2019/A1:2021
- IEC 60529:1989+A1:1999+A2:2013
- EN IEC 60598-2-1:2021
- EN IEC 60598-1:2021 + AMD11:2022

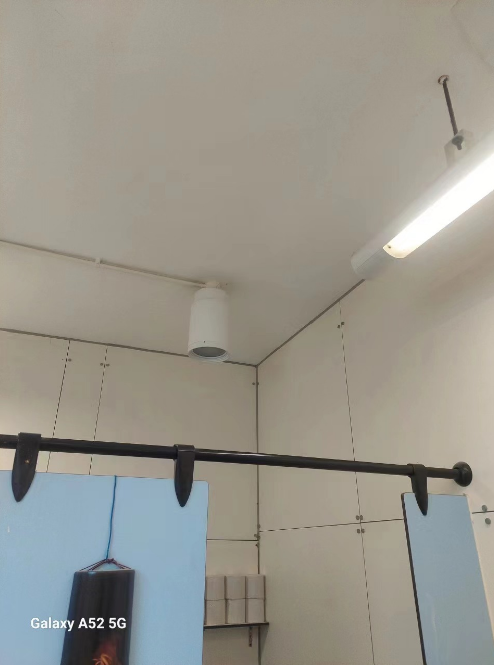

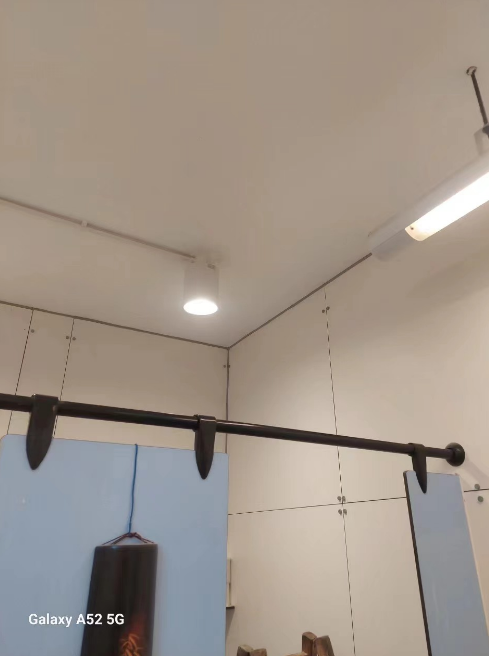

Application at Lei Muk Shue Fire Station
The LED Surface Mounted Downlight was installed at the Lei Muk Shue Fire Station located at 300 Wo Yi Hop Road, Kwai Chung, New Territories, Hong Kong. This lighting solution offers bright and energy-efficient illumination, enhancing visibility and ensuring safety across various operational and training areas within the fire station.
- Location: Lei Muk Shue Fire Station, 300 Wo Yi Hop Road, Kwai Chung, New Territories, Hong Kong
- Product: LED Surface Mounted Downlight
- Features: Durable, energy-efficient lighting for indoor spaces
- Benefits: High luminosity, long service life, and reduced maintenance costs
