How Is an Ultra-Thin Panel Bathroom Ventilating Fan Engineered?

Hello, fellow HVAC professionals, project contractors, and distribution partners. Ricardo here. If you deal with indoor environmental control, you already know that bathrooms are arguably the most demanding and hostile indoor environments for any electrical appliance. Hot showers and high-frequency daily use generate an intense, persistent load of humidity and organic odors. If this moist air is not exhausted effectively, it leads to devastating long-term consequences: weeping condensation on mirrors, peeling paint, compromised drywall, and an uncomfortable, mold-prone environment.

While passive ventilation—like an open window or a simple wall grille—might have been acceptable decades ago, modern energy-efficient building envelopes demand active, mechanical solutions. This is where the Ultra-Thin Panel Bathroom Ventilating Fan steps in. Engineered to balance high-performance air extraction with a clean, low-profile interior finish, this fixture has become the go-to standard for both high-end residential builds and light commercial washrooms. Today, we are going to dive deep into the engineering, fluid dynamics, and material science that make the VF-G series the ultimate moisture-management tool for your next project.

1. Architectural Integration: How Does the Ultra-Thin Panel Bathroom Ventilating Fan Achieve a Flush Fit?

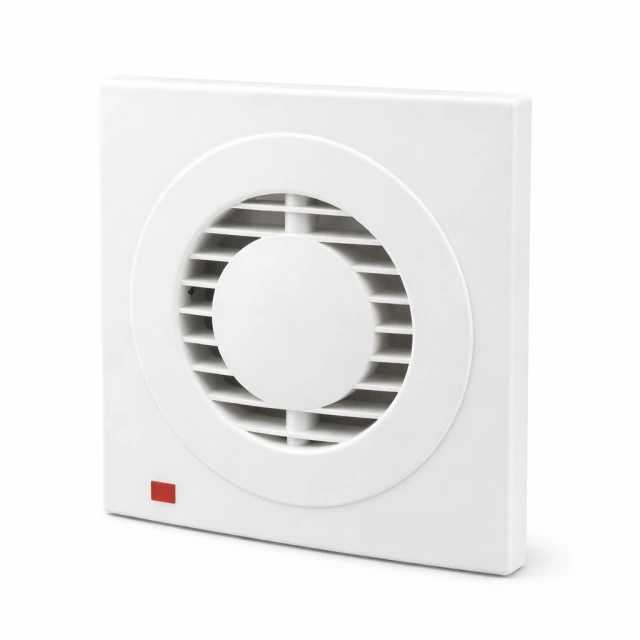

Let’s talk about design first, because in modern architecture, the mechanical systems must be invisible. Old-school exhaust fans were bulky, protruding from the ceiling like an industrial afterthought. The Ultra-Thin Panel Bathroom Ventilating Fan changes this paradigm by sitting virtually flush against the ceiling or wall substrate.

How do we achieve this? It comes down to re-engineering the spatial relationship between the motor housing and the front fascia. By utilizing a highly compact, optimized internal scroll housing, we can push the operational mechanics deeper into the duct void, leaving only a slim, sleek panel visible in the room. This low-profile aesthetic matches contemporary interior design trends seamlessly, making it a favorite among interior designers outfitting luxury apartments, condos, and hospitality suites. It proves that you do not have to sacrifice visual appeal for heavy-duty moisture extraction.

2. Electromagnetic Efficiency: What Makes the Professional Motor Reliable in a Bathroom Ventilating Fan?

A beautiful fascia means nothing if the engine fails after six months of heavy use. The heart of our Ultra-Thin Panel Bathroom Ventilating Fan is its professional motor configuration. In commercial and high-density residential scenarios, these fans are subjected to brutal duty cycles, often running for hours a day under heavy moisture loads.

We utilize a professional-grade motor designed specifically for stable running and consistent airflow. The internal windings and electromagnetic efficiency are engineered to handle the constant torque required to push dense, humid air through complex ductwork. This translates to highly reliable daily operation. For B2B contractors and facility managers, this means zero callbacks for burned-out motors. When you specify a fan with a professional motor, you are investing in a system that will maintain its specified cubic meters per hour (m³/h) extraction rate year after year.

3. Ingress Protection: How Does the IPX4 Structure Shield the Ultra-Thin Panel Bathroom Ventilating Fan from Moisture?

Water and electricity are a historically bad combination, which makes bathroom ventilation inherently tricky. To ensure safety and longevity, the VF-G series is built with an IPX4 structure. But what does that actually mean for the installer and the end-user?

In the IP (Ingress Protection) rating system, the "X" means it is not strictly rated for solid particle ingress (like heavy industrial dust), but the "4" is the critical number here. It certifies that the fan's electrical components and motor casing are protected against splashing water from any direction. In a wet-room environment—where steam billows from showers and water splashes near sinks—this moisture-ready structure is non-negotiable. The IPX4 rating guarantees that internal shorts and corrosion are mitigated, supporting long-term stability and compliance with strict electrical safety building codes.

4. Fluid Dynamics: How Does the Built-in Back Damper Prevent Reverse Airflow in Bathroom Ventilating Fans?

One of the most overlooked aspects of HVAC engineering in high-rise buildings and multi-family dwellings is duct pressure. When your Ultra-Thin Panel Bathroom Ventilating Fan is turned off, the ductwork connecting your bathroom to the outside world becomes an open tunnel. If the wind blows against the exterior vent, or if the building experiences stack effect (pressure differences), cold, stale, or polluted air can flow backward into your pristine bathroom.

We solve this fluid dynamics challenge with a precision-engineered back damper. This mechanical flap sits at the exhaust collar of the fan. When the fan is powered on, the force of the extracted air pushes the damper open smoothly. The moment the fan is switched off, gravity and a light spring mechanism snap the damper shut, sealing the duct. This drastically reduces unwanted reverse airflow, keeping the bathroom thermally stable and preventing outside odors from infiltrating the indoor space.

5. Volumetric Extraction: How Are Cutout Sizes and Airflow Matched for the Ultra-Thin Panel Bathroom Ventilating Fan?

Selecting the right ventilation fan is a math equation based on room volume and air changes per hour (ACH). A small powder room needs a completely different extraction rate than a massive master en-suite. To cater to every project requirement, we scaled the VF-G series across three distinct performance tiers.

Practical selection tip: For smaller bathrooms, the VF-G4 delivers an efficient 80 m³/h through a compact Ø105mm cutout. For high-use hospitality washrooms or larger residential spaces, scaling up to the VF-G6 ensures rapid clearing of heavy steam with a massive 250 m³/h capacity. Always ensure your ceiling or wall cutout perfectly matches these specifications to maintain the acoustic and structural integrity of the installation.

6. Smart Circuitry: How Do Time Delay Options Optimize Humidity Control in Bathroom Ventilating Fans?

Human behavior often conflicts with optimal HVAC practices. When someone finishes a shower, they typically turn off the light and the fan simultaneously. However, the air is still saturated with moisture. If the fan turns off immediately, that remaining moisture settles on surfaces, promoting mold growth.

To combat this, our series offers intelligent control options. Models designated with a "T" (e.g., VF-G4T) feature a built-in Time delay circuit. This allows the fan to continue running for a pre-set duration after the wall switch is turned off. This smart circuitry ensures that the room is thoroughly evacuated of residual humidity, drying out the space without requiring the user to manually return to shut off the switch. Additionally, "A" models feature an Indicator status light, providing clear visual feedback that the system is actively functioning—a great feature for commercial restrooms.

7. Mechanical Sealing: How Does the Back Damper Serve as an Anti-Mosquito Barrier in Bathroom Ventilating Fans?

Beyond fluid dynamics, the back damper serves a crucial secondary function in tropical, subtropical, and rural environments: pest control. An open duct is an invitation for insects, spiders, and mosquitoes to bypass window screens and enter the home directly through the ceiling.

When the fan is off, the back damper creates a physical mechanical seal. This "anti-mosquito" protection is an incredibly practical advantage that property managers and homeowners love. By blocking the duct path, the Ultra-Thin Panel Bathroom Ventilating Fan ensures that the washroom remains a clean, secure, and hygienic sanctuary, entirely isolated from exterior pests.

8. Acoustic Engineering: How Is Noise Mitigated Within the Compact Ultra-Thin Panel Bathroom Ventilating Fan?

High airflow usually comes with the penalty of high noise. But in a relaxing residential bathroom or a luxury hotel, a loud, rattling exhaust fan ruins the user experience. Acoustic engineering is central to our design philosophy.

By streamlining the internal volute (the casing that houses the impeller) and balancing the motor to microscopic tolerances, we eliminate the vibrations that cause low-frequency humming. Furthermore, the aerodynamic design of the ultra-thin front panel allows air to be drawn in smoothly, drastically reducing the turbulent "whooshing" sound of air striking plastic. The result is a fan that removes moisture aggressively while operating at a discreet acoustic level.

9. B2B Procurement: Why Is the Ultra-Thin Panel Bathroom Ventilating Fan Specified for Light Commercial Washrooms?

If you are an HVAC contractor, a distributor, or a project builder, your procurement choices define your reputation. The VF-G series is engineered specifically for B2B-driven needs.

Why do commercial facility managers specify this unit? Because it covers all the bases. The IPX4 rating ensures it survives the cleaning protocols of office washrooms. The standard, time delay, and indicator options allow you to customize the fan for different zones within a single hospital or hotel project. Importers and wholesalers appreciate the clear performance specs, the low RMA (Return Merchandise Authorization) rates due to the professional motor, and the consistent supply chain reliability we offer as a dedicated factory partner.
