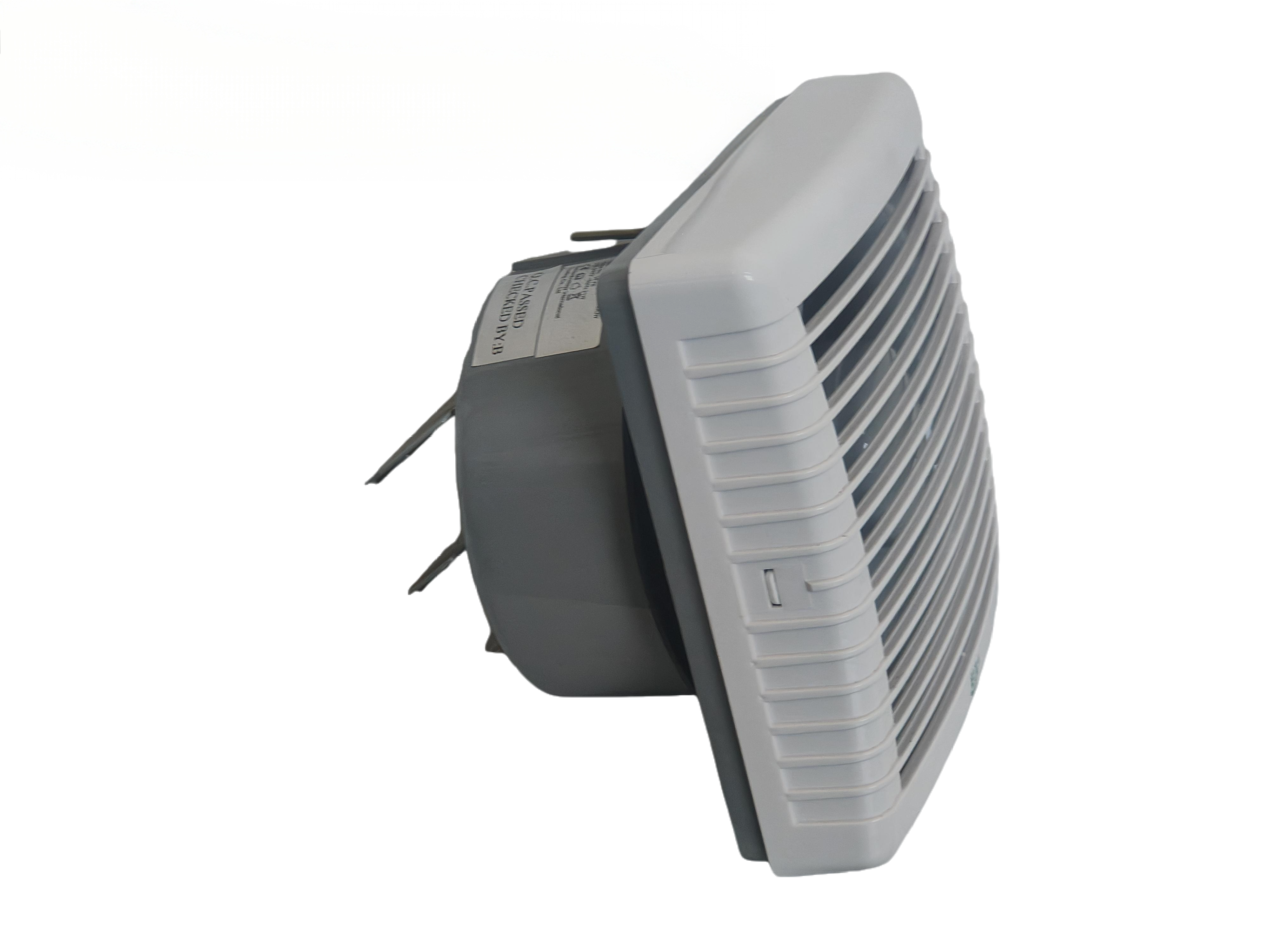

Durable Copper Motor for Long-Term Stability
Both VF-F6 and VF-F8 models feature a dust-proof enclosed copper motor, engineered for smooth rotation, reduced heat generation, and extended service life under continuous operation.
High-Strength PP+ABS Housing
The fan structure is made from corrosion-resistant PP+ABS composite, offering excellent impact strength, humidity resistance, and long-term durability even in demanding environments.
IPX4 Water-Resistant Design
With an IPX4 rating, the VF-F6 / VF-F8 is suitable for moisture-prone areas such as bathrooms, kitchens, laundry rooms, and commercial restrooms, ensuring reliable and safe operation.
Electric Backflow Shutter System
The electrically operated shutter opens automatically during operation and closes when idle. It prevents backdraft, reduces energy loss, and blocks insects, dust, and outside debris—ensuring cleaner and healthier airflow.
Technical Specifications
Performance
| Model | Rated Voltage (V) | Frequency (Hz) | Power (W) | Speed (rpm) | Noise (dB) | Air Delivery (m³/h) |
|---|---|---|---|---|---|---|
| VF-F6 | 220–240 | 50 | 21 | 1400 | 43 | 218 |
| VF-F8 | 220–240 | 50 | 30 | 1300 | 44 | 540 |
Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | Installation D* (mm) | Hole Size |
|---|---|---|---|---|---|---|
| VF-F6 | 229×229 | 60 | 85 | 175 | ≥390 | Ø185 |
| VF-F8 | 294×294 | 67 | 85 | 236 | ≥450 | Ø250 |
Application Scenarios
This series is suitable for:
- Bathroom ventilation
- Kitchen exhaust
- Basements and utility rooms
- Office and commercial restrooms
- General indoor air extraction
Safety Standards
The VF-F6 / VF-F8 complies with major international electrical and safety standards, including:
- IEC 60335-1:2010 / AMD2:2016
- IEC 60335-2-80:2015
- EN 55014-1:2021
- EN 61000-3-2:2019 + A1:2021
- EN 60529 (IPX4 Waterproof)
