Enhanced Stability for Outdoor Units

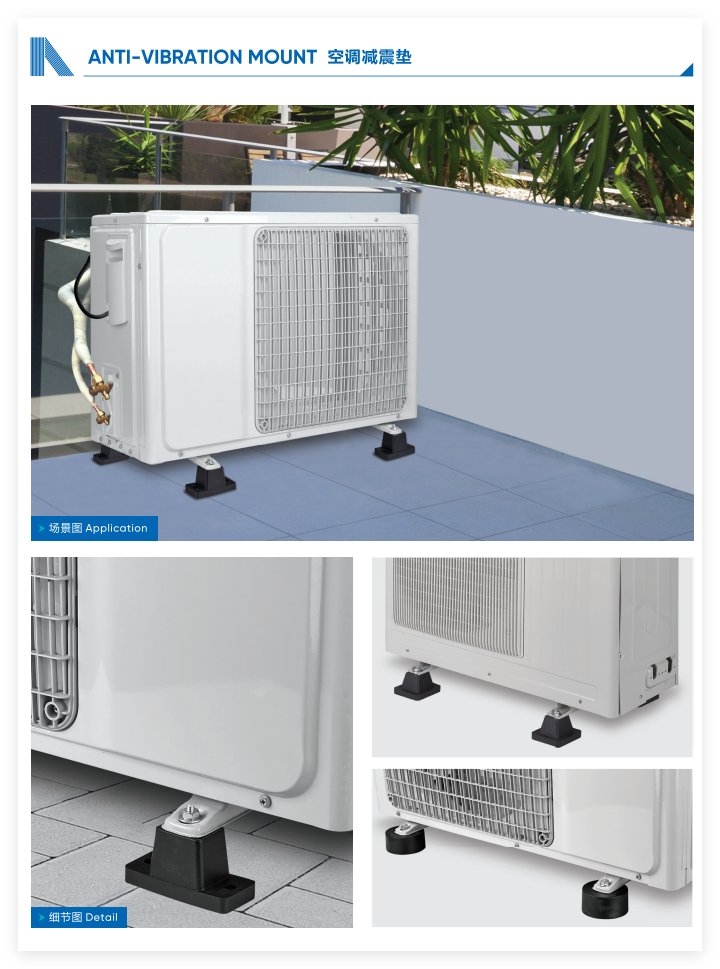

The mount acts as a buffer between the air-conditioning compressor and the ground surface. This reduces vibration transfer, protects surrounding structures, and minimizes operational noise during compressor start-up and continuous running.
Durable Construction for Long-Term Use
Each mount is manufactured using high-strength materials capable of supporting heavy outdoor units. The robust body and reinforced base ensure dependable load-bearing performance. The threaded metal insert allows for firm attachment and prevents movement over time.
Smooth Operation with Reduced Noise
The vibration-absorbing design helps maintain quiet operation in balconies, rooftops, ground installations, and other areas where noise control is important. It is especially suitable for installations in residential buildings, hotels, offices, and other noise-sensitive environments.
Easy Installation and Versatile Applications
The mount is designed to work with a wide range of air-conditioning outdoor units. Installation is straightforward—simply align, secure, and place the compressor on top. It can also be used for other equipment that requires vibration isolation, such as pumps or light machinery.
Technical Specifications
| Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | Product N.W. | Qty/CTN | Carton Size | G.W. | Qty/20'GP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WTG001-A | 110 | 50 | 37 | 61 | 43 | 37 | – | – | – | – | – | 220 g | 72 pcs | 39.5 × 28 × 22 cm | 16.8 kg | 83,952 pcs |
| WTG002-A | 107 | 48 | 55 | 62 | 43 | 40 | – | – | – | – | – | 202 g | 80 pcs | 31 × 30 × 26 cm | 17.0 kg | 95,120 pcs |
| WTG002-B2 | 112 | 57 | 63 | 71 | 45 | 43 | 40 | – | – | – | – | 275 g | 80 pcs | 33.5 × 33.5 × 27.6 cm | 22.0 kg | 74,640 pcs |
| WTG002-C | 110 | 48 | 57 | 48 | 53 | 121 | 90 | 32 | 29 | – | – | 422 g | 56 pcs | 45 × 38 × 22 cm | 24.4 kg | 41,216 pcs |
Where the Mount is Commonly Used
- Residential air-conditioner outdoor units
- Small commercial HVAC installations
- Ground or wall-mounted compressors
- Equipment requiring vibration reduction
Reliable Support for Modern HVAC Systems
With excellent load-bearing capacity and efficient vibration absorption, this anti-vibration mount provides reliable performance for long-term operation. It is an essential accessory for ensuring stability, reducing noise, and protecting air-conditioning equipment in various installation environments.
